01 / FINGER WALKWAY PONTOON

Finger walkway pontoon is the main reliance of the yacht berthing, which has a good safety and stability. DELI finger walkway pontoon adopts galvanized steel structure or 6061-T6 aluminum structure.

Product specification:

Product name	Length (m)	Width(m)	Freeboard (mm)	Live load(KN/m³)	Lifetime (year)
Aluminum walkway	6	0.7	550-650	1.2~2.0	20+
	8	0.7	550-650	1.2~2.0	20+
	10	0.9	550-650	1.2~2.0	20+
	12	1.3	550-650	1.2~2.0	20+
	15	1.3	550-650	1.2~2.0	20+
	15	1.5	550-650	1.5~2.0	20+
	18	1.5	550-650	1.5~2.0	20+
	18	1.8	550-650	1.5~2.0	20+
	customized	customized	customized	customized	20+

02 / GANGWAY

Aluminum gangway and steel gangway can be processed and customized according to the different needs of customers, based on the actual situation of the project design of different length, width and design load. Aluminum gangway adopts 6061-T6 aluminum main structure, the steel gangway is mainly made of international profile welding or riveting. The gangway decking can be weatherproof panels, such as natural anticorrosive wood, plastic wood or hardwood paving.

Product name	Length (m)	Width(m)	Live load (KN/m³)	Lifetime (year)
Gangway	4~10	1.0	1.5~2.5	20+
	4~12	0.7	1.5~2.5	20+
	6~15	0.9	1.5~2.5	20+
	6~18	1.3	1.5~2.5	20+
	8~20	1.3	1.5~2.5	20+
	8~25	1.5	1.5~3.0	20+
	8~25	1.5	1.5~3.0	20+
	customized	customized	customized	20+

03 / DECKING SYSTEM

ANTISEPSIS PINE WOOD DECKING

Antisepsis pine is able to meet almost all requirements of marina decking. After antisepsis treatment, it prevents any kinds of mildew; avoid the wormhole of white ant and animalcule. Remain the right water rate, reduce the crack. And extend the life circle to 30 years.

WPC DECKING

Wood & Plastic composite (WPC) is made of plastic and wood by high temperature with scientific production formula, the rate between plastic and wood is 50%- 50%, the water absorption is 0.2% only, and it is really water-proof, moisture-proof

HARDWOOD DECKING

Can be hold under sea over 50 years, and durability make it ideals for outdoor industrial purposes like port construction, bridges, ship building, but expensive.

04 / FLOATS

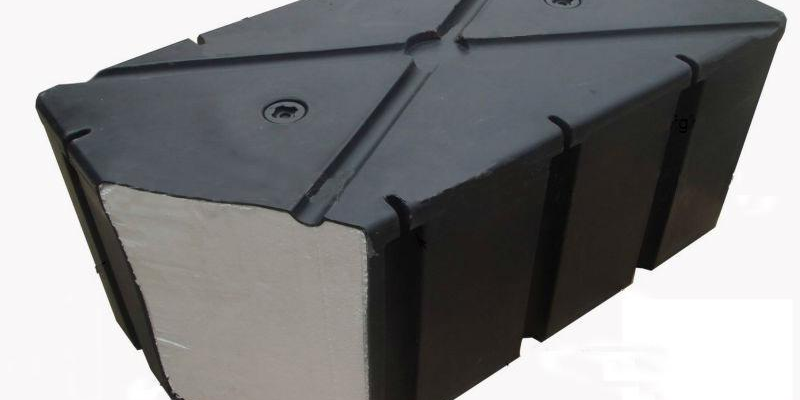

LLDPE FLOATS

Dimension(mm) :
1200*800*600 / 1500* 900*450 / 1200*800* 550 / 1600*500*450 / 1200*850*700 / 1650*920*650 / 1200*1000*320 / 2000*1000*600 / 1400*850* 550 / 2100*950*450 / Material: 5mm thick EPS foam(>15kg/m³）
Buoyancy: ≥460kg
lifespan: about 20 year
UV resistance, Seawater resistance.

CONCRETE FLOATS

Dimension(mm):
1150*220*128 mm
Material: Reinforced Concrete box, the average wall thickness of the concrete is 10cm, and the exterior is stainless steel die mesh, filled with EPS foam(>15kg/m³）
Buoyancy: 430kg / m²
Lifespan: about 50 years
Pros: protected by reinforced concrete. surface smooth, great buoyancy, good stability, non maintenance.
* Customization is acceptable

05 / FIXING SOLUTIONS

PILE SYSTEM

Pile anchoring is usually adopted when water level variations are large
The floating dock is moored to piles with pile guides
Various types of piles are available: steel, concrete or wood
Pile mooring is not suitable for site subject to thick ice
No adjustment required after installation
Long-lasting mooring method
All components and hardware are suited for salt-water environments
Low maintenance

H-BEAM SYSTEM

H-beam mooring method can be used for floating docks anchored alongside a seawall or bulkhead.
Economical mooring solution compared to piles
Ideal when water level variations are large
No adjustment required after installation
Low maintenance
All components and hardware are suited for salt-water environments

STEEL STRUT SUPPORT

Be used for floating docks along the shoreline, particularly when the shoreline is uneven
Low maintenance
No adjustment required after installation.
All components and hardware are suited for salt-water environments

SUPFLEX

The floating dock with underwater concrete anchor block is fixed through a tension spring fixtures , tension spring device is composed of special anti-corrosive original natural fiber and metal. It is very solid and stable tension, suitable for the water level drops within 6 m of all types of floating dock, the floating dock will always maintain the same level position and freeboard height when water level changes.

CONCRETE BLOCKS

Floating docks are moored to the seabed with concrete blocks placed in selected locations, and to the shore with mooring lines.
The weight of the block and the mooring line dimensions are chosen according to site conditions.
All components and hardware are suited for salt-water environments
No adjustment required after installation
Deli uses hot-dip galvanized chains and shackles.

06 / MOORING CLEATS

15 KN

Material: solid AISI 316
Base： 75*214 mm
Height: 100mm
Fixing: no. 2 M16
Strength: 15 KN
boats < 25 feet long

25KN

Material: solid AISI 316
Thickness: 8 mm
Diameter: 125 mm
Fixing: no. 2 M 24
Strength: 25 KN
boats < 30 feet long

100KN

Material: solid AISI 316
Base： 60*230 mm
Height: 130mm
Fixing: no. 3 M16
Strength: 50-100 KN
boats < 100 feet long

07 / FENDER

Using high quality rubber materials with high energy absorption ability, It can effectively prevent ships from hitting the dock, and also can ensure that ships do not suffer, with the features of not easy to deformation, durability firm and easy installation. It can not break at a low temperature of -40℃, and does not change in a high temperature environment of 60℃. It is suitable for the requirements of low reaction force, high energy absorption of various types of floating dock.
